- ABT & Gibbons
ABT GIBBONS Lever Operated Latch & Deadbolt – Centre Case – 32/85-48 – With Snib
€ 123.95 exc. VAT Add to cartThe ABT GIBBONS Lever Operated Latch & Deadbolt Centre Case features a 31mm backset with 85mm and 45mm centres. It is a twin spindle latch and deadbolt centre case with a 146mm case height, 48mm case width, and a 20mm faceplate width. It also includes an anti-thrust snib, threaded brackets, and a reversible latch bolt. IdentificationThere are usually no markings on the faceplate to indicate the manufacturer. HandingThe latch can be reversed by locating the Allen screw on the side of the lockcase, in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesThis centre case is commonly used in multipoint locking systems on aluminium or steel doors.
- Centre Case
ALDRIDGE Multipoint Lock Popular Gearbox Kit – 10 Gearboxes, 2 Overnight Locks & 1 Keep
€ 407.23 exc. VAT Add to cartA selection of 10 x popular multipoint gearboxes, 2 x overnight locks and an adaptable centre keep. Contains 30mm, 35mm & 45mm backset centre cases from different manufacturers as listed here: ASEC GU copy old style latch & deadbolt 30mm backset ASEC Lockmaster copy single spindle latch & deadbolt 35mm backset ASEC Lockmaster copy twin spindle latch & deadbolt 35mm backset ASEC GU copy old style latch & deadbolt 35mm backset ASEC Mila copy single spindle latch only 35mm backset ERA split spindle latch & deadbolt 35mm backset ASEC Lockmaster copy latch & deadbolt twin spindle 45mm backset ERA split spindle latch & deadbolt 45mm SAFEWARE twin spindle latch & hookbolt 35mm backset LOCKMASTER twin spindle latch & hookbolt 35mm backset FUHR overnight lock 35mm backset FUHR overnight lock 45mm backset CHAMELEON adaptable centre keep.
- Asec
ASEC Copy MK3 Maco GTS 35mm Gearbox Only – 35/92
€ 22.87 exc. VAT Add to cartThe ASEC Copy MK3 Maco GTS 35mm Gearbox Only has a 35mm backset with 92mm centres and is a single spindle centre case. This ASEC replacement gearbox is designed as a direct copy of the Maco MK3 GTS centre case with a 35mm backset. It is an ideal repair solution where the original Maco multipoint lock strip remains in working order and only the gearbox has failed. HandingThe latch can be reversed by pushing up the latch hold snib located on the side of the lockcase, pulling out and reversing the latch, and returning it to the case. You should hear a click as it engages. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesA practical and cost-effective replacement for installers dealing with failed Maco MK3 centre cases. Always check dimensions to ensure correct compatibility with the existing lock strip and handle set.
- Centre Case
ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox – 30/92
€ 22.87 exc. VAT Add to cartThe ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox has a 30mm or 35mm backset with 92mm centres. It is a single spindle latch and deadbolt centre case with a 207mm case height, 45mm or 50mm case width, and a 16mm faceplate width. This is an ASEC-branded replacement gearbox designed to suit old-style GU multipoint locks with lever-operated latch and deadbolt operation. It provides a direct retrofit option for repair jobs where the existing full-length strip remains serviceable. HandingSimply twist the latch to the correct handing before inserting it into the locking strip. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesThe faceplate screw centres align with older GU multipoint lock strips.
- Centre Case
ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox – 35/92
€ 22.87 exc. VAT Add to cartThe ASEC GU Copy Lever Operated Latch & Deadbolt Old Style Gearbox has a 30mm or 35mm backset with 92mm centres. It is a single spindle latch and deadbolt centre case with a 207mm case height, 45mm or 50mm case width, and a 16mm faceplate width. This is an ASEC-branded replacement gearbox designed to suit old-style GU multipoint locks with lever-operated latch and deadbolt operation. It provides a direct retrofit option for repair jobs where the existing full-length strip remains serviceable. HandingSimply twist the latch to the correct handing before inserting it into the locking strip. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesThe faceplate screw centres align with older GU multipoint lock strips.
- Centre Case
ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox – 35/92
€ 21.57 exc. VAT Add to cartThe ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox has a 35mm or 45mm backset with 92mm centres. It is a single spindle latch and deadbolt centre case with a 228mm case height and a 47mm or 57mm case width. This ASEC gearbox is a direct replacement for the Lockmaster latch and deadbolt centre case, designed for use on UPVC and composite doors with a single spindle setup and Euro profile compatibility. It is an ideal solution when the centre case gearbox is the only component that needs replacing within the locking mechanism. The gearbox is reversible and therefore suitable for both left handed and right handed applications. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
- Centre Case
ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox – 45/92
€ 28.89 exc. VAT Add to cartThe ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox has a 35mm or 45mm backset with 92mm centres. It is a single spindle latch and deadbolt centre case with a 228mm case height and a 47mm or 57mm case width. This ASEC gearbox is a direct replacement for the Lockmaster latch and deadbolt centre case, designed for use on UPVC and composite doors with a single spindle setup and Euro profile compatibility. It is an ideal solution when the centre case gearbox is the only component that needs replacing within the locking mechanism. The gearbox is reversible and therefore suitable for both left handed and right handed applications. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
- Centre Case

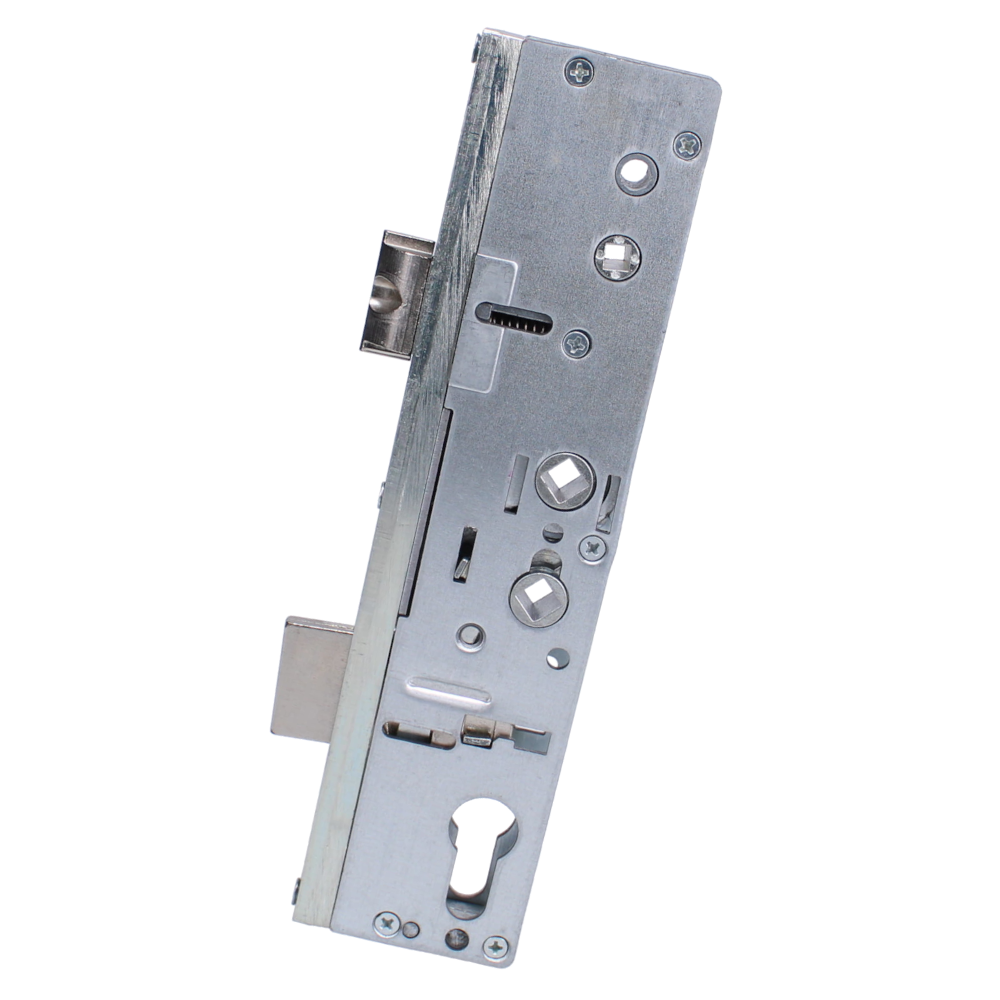

ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Twin Spindle Gearbox – 35mm 92/62
€ 21.57 exc. VAT Add to cartThe ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Twin Spindle Gearbox has a 35mm or 45mm backset with 92mm and 62mm centres. It is a twin spindle latch and deadbolt centre case with a 228mm case height and a 47mm or 57mm case width. This ASEC gearbox is a direct replacement for the Lockmaster latch and deadbolt centre case, designed for use on UPVC and composite doors with a twin spindle setup and Euro profile compatibility. It is an ideal solution when the centre case gearbox is the only component that needs replacing within the locking mechanism. The gearbox is reversible and therefore suitable for both left handed and right handed applications. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
- Centre Case
ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Twin Spindle Gearbox – 45mm 92/62
€ 21.57 exc. VAT Add to cartThe ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Twin Spindle Gearbox has a 35mm or 45mm backset with 92mm and 62mm centres. It is a twin spindle latch and deadbolt centre case with a 228mm case height and a 47mm or 57mm case width. This ASEC gearbox is a direct replacement for the Lockmaster latch and deadbolt centre case, designed for use on UPVC and composite doors with a twin spindle setup and Euro profile compatibility. It is an ideal solution when the centre case gearbox is the only component that needs replacing within the locking mechanism. The gearbox is reversible and therefore suitable for both left handed and right handed applications. HandingThe latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
- Centre Case

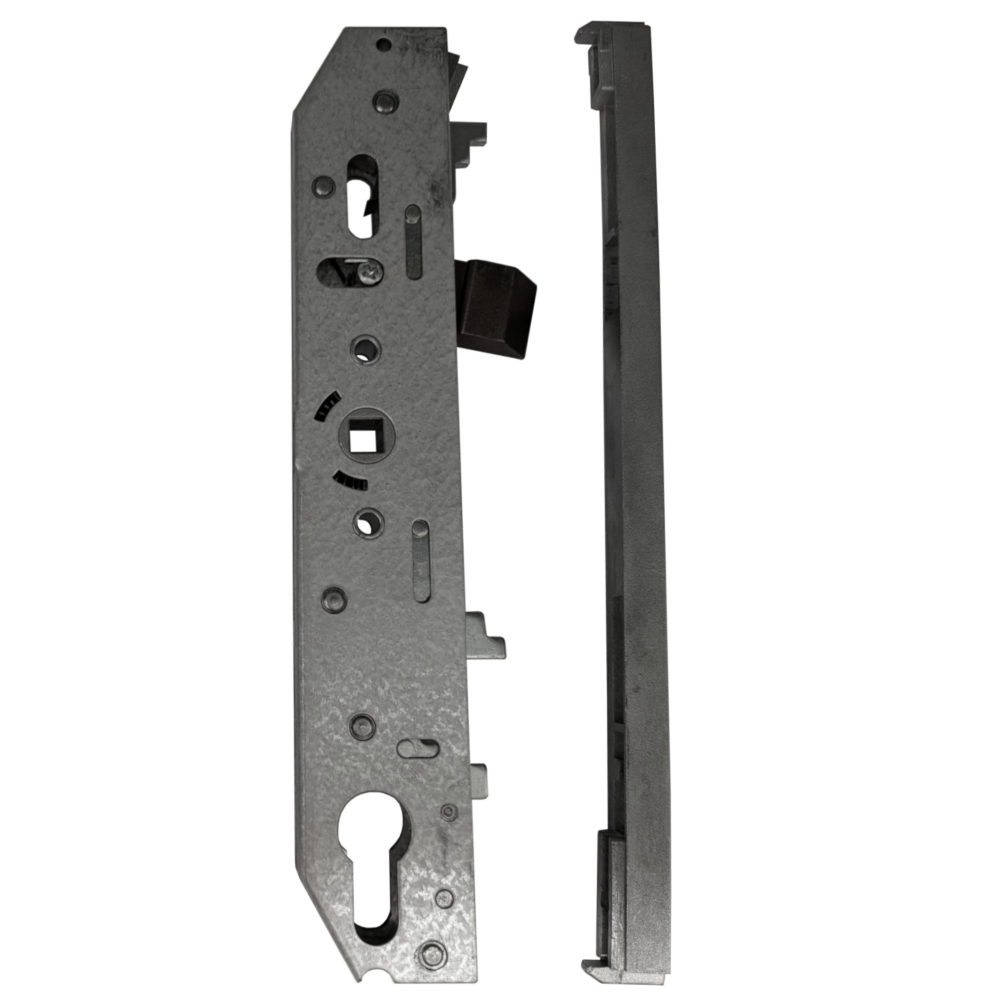

ASEC Mila Copy Latch Only Gearbox – 25/92
€ 40.84 exc. VAT Add to cartThe ASEC Mila Copy Latch Only Gearbox has a 25mm or 35mm backset with 92mm centres. It is a single spindle latch only centre case with a 234mm case height and a 40mm or 50mm case width. Designed to suit old style Mila latch only cases, it offers a cost-effective solution for repairing or refurbishing existing door systems without the need to replace the entire strip. Please note the fixing points are unthreaded and require the use of self-tapping screws. Some older locks are fitted with an offset or cranked connector. This only affects gearbox replacements and not full-length locks, but it is an important factor to check before fitting. Replacement gearboxes are now supplied with inline connectors only. They remain compatible with older locks. However, the drive gear behind the faceplate will need adapting by modifying the square hole in the drive gear into a slot to ensure correct operation. HandingThe latch can be reversed by removing the screw in the side of the case, removing the latch, flipping it to the opposite hand, and then refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesThis unit is a copy of the original Mila centre case and is compatible with many UPVC door multipoint locking systems. Check all measurements carefully before installation to ensure correct fit.
- Centre Case
ASEC Mila Copy Latch Only Gearbox – 28/92
€ 69.18 exc. VAT Add to cartAsec single spindle lever operated latch only centre case to suit Mila. This euro profile lock case is available with 25mm, 28mm or 35mm backset.
- Centre Case

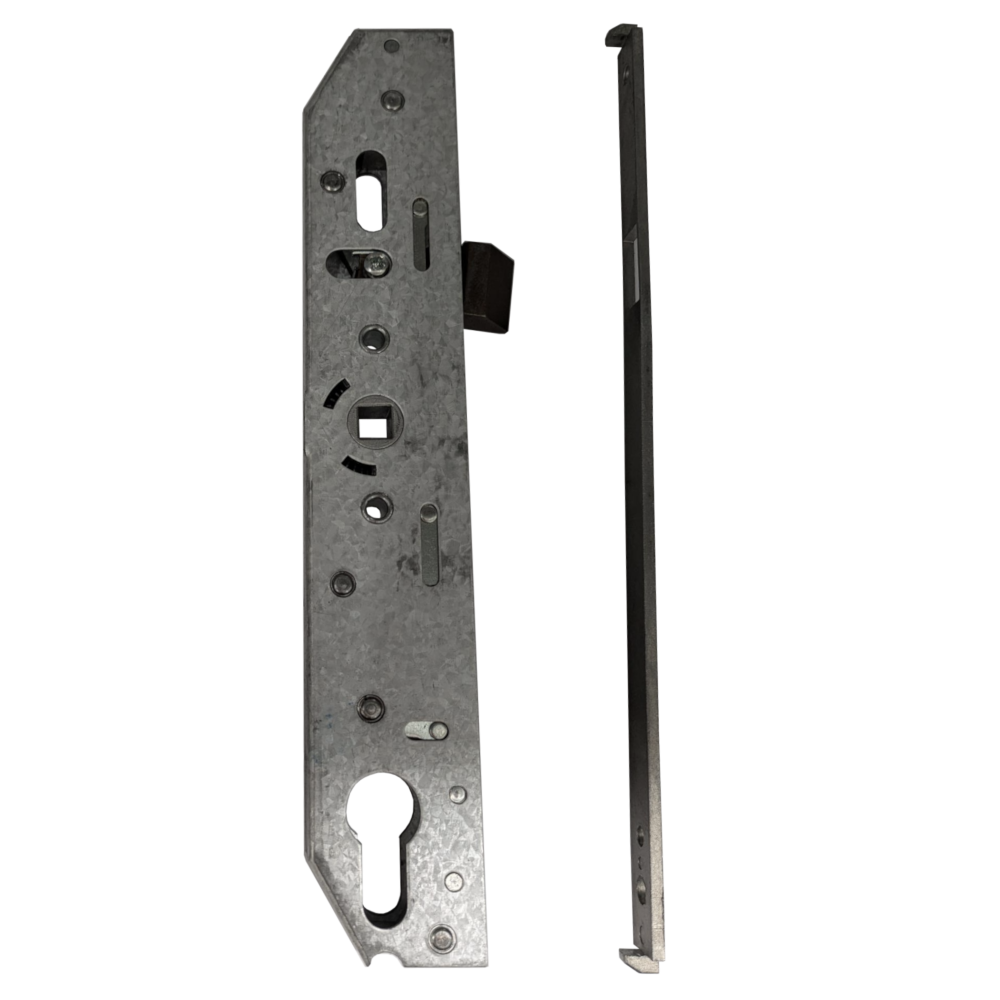

ASEC Mila Copy Latch Only Gearbox – 35/92
€ 41.57 exc. VAT Add to cartThe ASEC Mila Copy Latch Only Gearbox has a 25mm or 35mm backset with 92mm centres. It is a single spindle latch only centre case with a 234mm case height and a 40mm or 50mm case width. Designed to suit old style Mila latch only cases, it offers a cost-effective solution for repairing or refurbishing existing door systems without the need to replace the entire strip. Please note the fixing points are unthreaded and require the use of self-tapping screws. Some older locks are fitted with an offset or cranked connector. This only affects gearbox replacements and not full-length locks, but it is an important factor to check before fitting. Replacement gearboxes are now supplied with inline connectors only. They remain compatible with older locks. However, the drive gear behind the faceplate will need adapting by modifying the square hole in the drive gear into a slot to ensure correct operation. HandingThe latch can be reversed by removing the screw in the side of the case, removing the latch, flipping it to the opposite hand, and then refitting the screw. OperationLocking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down. NotesThis unit is a copy of the original Mila centre case and is compatible with many UPVC door multipoint locking systems. Check all measurements carefully before installation to ensure correct fit.
