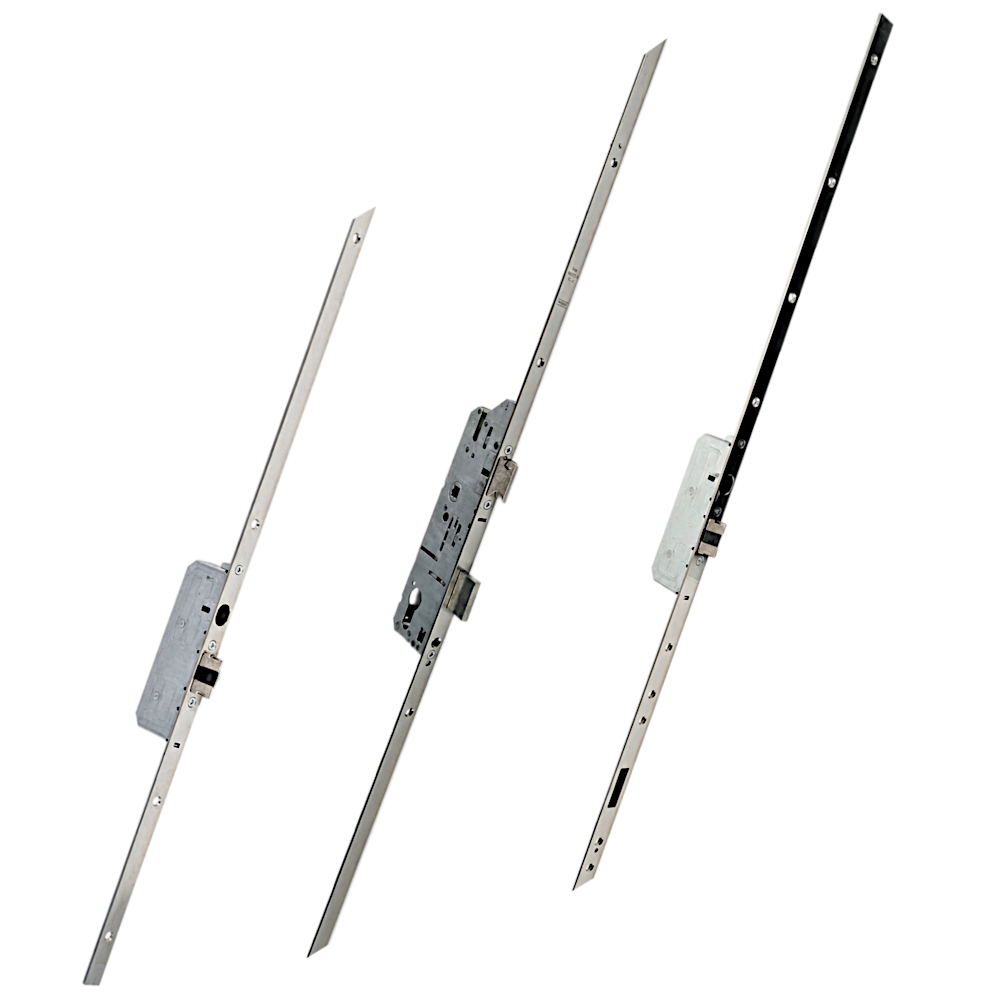

The FUHR 833 Type 4 auto locking latch with deadbolt and 2 latches has a 35mm backset, 92mm centres and a 20mm faceplate width. GearboxLatch & deadbolt split spindle gearbox with 92mm centres.  Additional Locking PointsIn addition to the locking points within the gearbox, the full length strip has 2 latch locking points.  Faceplate20mm wide faceplate, ideal for use on UPVC, timber or composite applications.  Locking Point Distances Locking Point Distance A = 717mmLocking Point Distance B = 772mmCroppableThis full length unit is croppable to allow the strip height to be reduced to suit the door it is being installed into.  HandingThe latch can be reversed by locating the Allen screw on the side of the lockcase, in line with the latch. Remove the screw, pull out and reverse the latch, and refit the Allen screw. OperationLocking Method – Closing the door automatically engages the latch bolts. To open from outside turn the key to retract the locking points; from inside use the lever handle to retract the locking points. The centre deadbolt is locked/unlocked by turning the key.

The FUHR 855 Type 1 Key Operated Latch & Deadbolt is a full multipoint lock unit with 4 roller cams. It features a Euro profile centre case with a 16mm faceplate and 8mm single spindle. The unit is locked by one full turn of the key, and unlocked by one full turn of the key and a push down on the lever – the latch bolt can also be withdrawn by key. The faceplate features a corrosion resistant surface to ensure long life. It is reversible making it suitable for both left and right handed applications and comes complete with a 10 year guarantee.

The Fuhr 855 type 8 keywind is a latch and deadbolt single spindle multipoint, with 2 round bolts and 2 rollers. It is operated using the key which engages and disengages the locking points. Two full turns of the key are required to fully engage the locking points. Instead of a lever handle, a fixed pad is used on the outside of the door and the key used to operate the latch. From the inside, the latch can be operated using a lever handle. The latch and deadbolt are reversible. The tapered nose on the round bolt ensures ease of operation and aids weather seal compression, whilst the 20mm throw of the round bolt provides security.

The FUHR 856 Lever Operated Euro Profile Slave Lock with 92mm centres is suitable for use on the slave leaf of French patio and sliding doors. It has a total length of 900mm and a 16mm faceplate, suitable for door heights between 1850mm and 2490mm.
